Low Pressure Only on Cold Side at Shower: First Steps

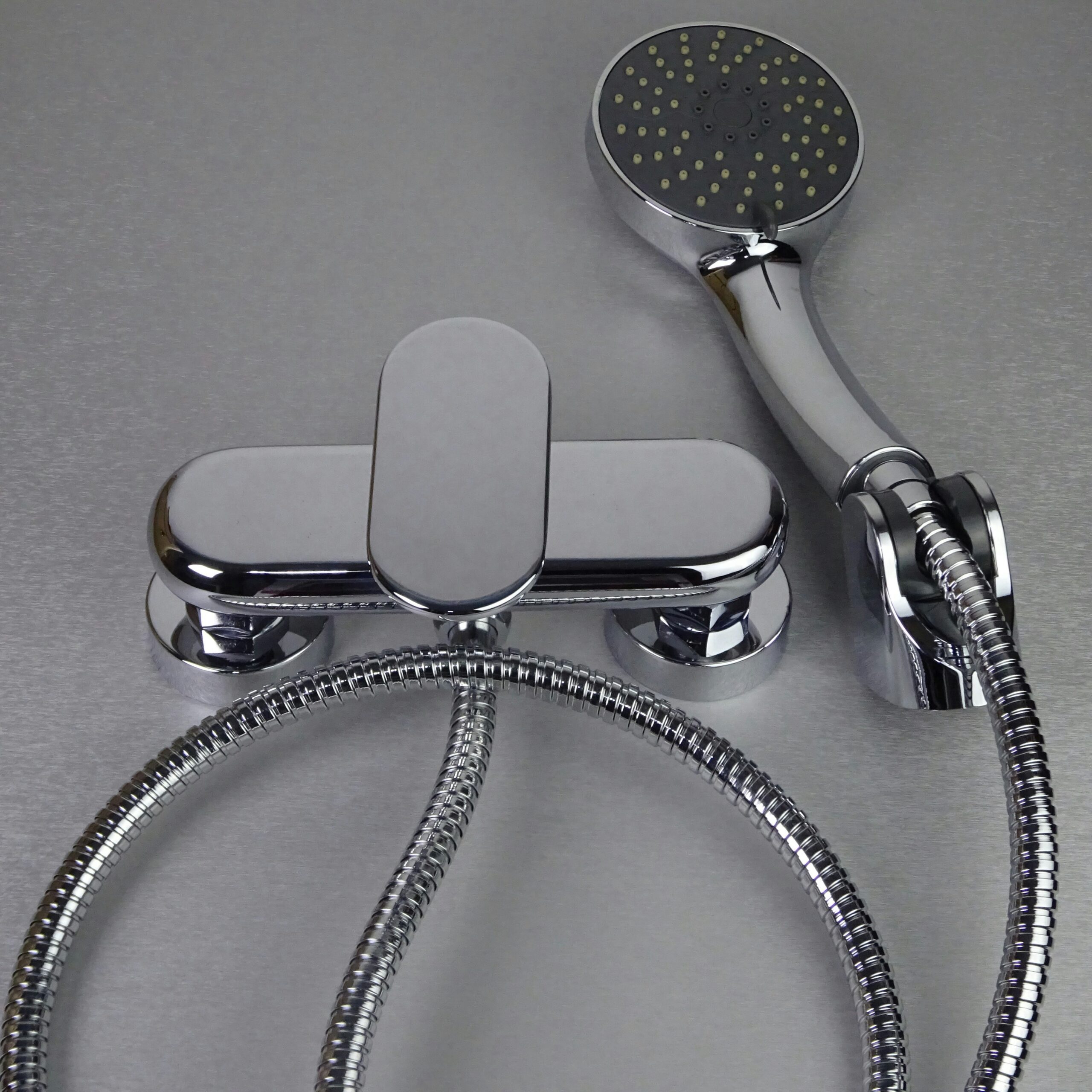

Lever handle, handheld showerhead and flexible hose against a gray background.

A shower that seems weak toward cold needs its actual feed and control identified. Pressure-balancing or thermostatic behavior can affect delivered flow when an inlet changes. A sink stop under a nearby basin is not automatically a shower isolation valve.

Keep temperature and access safe

Stop bathing if temperature becomes unpredictable, scalding, or cold supply is lost. Keep others out of the spray and have the cause assessed; do not recreate an unstable event under the shower or turn full hot to diagnose weak flow. Do not use a hand or body part as the temperature instrument. Any suitable check is attended, off-body, with a stable safe temperature, an accepting drain and controlled capture; stop for temperature change, leakage or rising water.

For an uncontrolled leak, use only an identified safely accessible supply stop under its actual method; do not force it. Keep away from wet, sagging or unstable finishes. For suspected fuel gas, leave immediately, avoid switches, valves and phones in the affected area, and call emergency help from safety. Keep away from wet electrical equipment; never enter water to reach a breaker or touch wet controls. Use appropriate qualified help when access or isolation is unsafe.

The photograph is a hardware illustration; it does not establish your valve type or demonstrate a cold-flow fault.

For related cold-side shower questions: Low Pressure Only on Cold Side at Shower: Test Setups — Distinguish a retained valve, trim-only access and a model-approved cartridge-out procedure.; Low Pressure Only on Cold Side at Shower: Service Record — Keep the actual service boundary and changes between isolated work and live testing explicit..

Identify cold delivery and the actual shutoffs

  • Original temperature/flow behavior and any sudden loss of cold.
  • Model, recent work and the actual location/function of known stops.
  • Other cold-water observations already available under ordinary conditions.

Choose the next step from actual evidence

  1. Stop bathing if cold loss or unstable mixing makes temperature unsafe. Do not turn full hot to compare or keep cycling the handle to free a presumed spool.
  2. Use the actual stop type and travel. Do not turn every stop counterclockwise to its limit or cycle a stiff valve to flush debris. Corroded, leaking, unidentifiable or inaccessible isolation needs appropriate service.
  3. Internal inspection needs source-off, verified pressure release and the actual compatible service method. Refit every serviced part before restoring supply. A changed result can help assessment but does not uniquely prove the cold cartridge or stop caused the original complaint.

Separate spray, flow and pressure

Spray feel is not a pressure reading. Volume collected over time measures delivered flow; a pressure gauge measures pressure at its own connection, with the location, time and draw conditions recorded. A different sink, bare shower arm or lower-floor hose tap has different resistance and may have a different route. A stronger result can help direct assessment but does not uniquely locate a fault or prove that a normally rated head is clogged. Use the actual outlet rating, installed valve and matched conditions before selecting parts or a regulator adjustment.

Keep service specific to the installed model

Ordinary owner-approved nozzle or removable-screen cleaning can be appropriate with water off, secure footing and the actual finish-safe cleaner and retention method. Identify a screen, seal and flow limiter correctly; do not pry out, drill or discard a limiter to make the spray stronger. Do not twist a concealed shower arm, force a stuck spout or use drain cleaner on a supply restriction. Fully refit serviced parts, required seals and protective components before the suitable leak/operation check.

Before removing a cartridge, spool, retaining part or pressure housing, isolate the actual supplied segment, control retained hot water, relieve its pressure by the approved path and verify shutoff. A nearby tap on a different branch may not release that segment. Some manufacturers permit a controlled cartridge-out flush or a properly retained untrimmed test; that requires the actual procedure, safe temperature, effective capture and control. Re-isolate and verify release before touching or refitting parts afterward. A towel, short time or comfort with tools is not a substitute. Preserve the correct retainer, lubricant, orientation, temperature-limit and commissioning requirements; do not open finished walls or change a PRV as a generic next step.

Does strong cold flow at the sink prove the shower cartridge failed?

No. Different rates, routes and control behavior limit that conclusion. It narrows the observation to report, not the repair to buy.

Related situations

Sources and equipment limits

These primary sources explain the stated principles or named equipment examples. They do not identify your installed system. Use the actual model instructions and local requirements for service. Independent professional review and field testing have not been obtained.
